Do You Need the Mimosa B11 Backhaul Radio for Your Wireless Network?
The B11 radio from Mimosa provides gigabit licensed backhaul that leads the market, instantaneously adjusting to changing upstream and downstream bandwidth requirements at the lowest cost per Mbps in the sector.
When Should You Use Mimosa’s B11 Backhaul Radio for Your Wireless Network? You’ll discover:
The most crucial elements for preserving dependable backhaul Examples of the Mimosa B11 in use in the real world How the Mimosa B11 compares to its competitors
Why our industry-leading backhaul systems, which have won several awards, offer the greatest price/performance The ideal choice for your wireless network is Mimosa B11.
Concerning the Mimosa wireless network

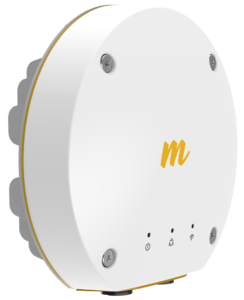

A radio backhaul system called Mimosa B11 was created expressly to suit the needs of the modern Internet, where bi-directional traffic is continuously shifting and demands the best resource management to achieve high bit rates and low latency. Mimosa wireless network B11 may be found at Dubai’s Digital World Technology.
Spec
| Features / filters | |
| Antenna frequency | 11 GHz |
| Maximum throughput of the radio link | 1,5 Gbps |
| Number of LAN ports | 1x [100/1000M (RJ45)] , 1x SFP (1,25G), |
| Antenna gain | Not applicable |
| Device type | Radioline |
| Performance | |
| Max. Performance | Up to 1.5 Gbps IP aggregated UL/DL (1.7 Gbps PHY), 750 Mbps IP in TDMA-FD mode |
| Delay | < 1 ms |
| Work records | TDMA, TDMA-FD |
| Radio | |
| MIMO imodulation | 4×4:4 MIMO; OFDM to 256QAM |
| Bandwidth | One or two 20/40/80 MHz channels |
| Operating frequency range | 10000-11700 MHz depending on operating region |
| Max. Transmission power | 27 dBm |
| Power supply | |
| Max. Power consumption | 30 W |
| Power supply | 48 V DC, 802.3at |
| Surge protection | 6 kV |
| Power supply | Compliant with Passive POE or 802.3at, 48-56 V, with surge protection to IEC61000-4-5 (power supply included) |
| Physical characteristics | |
| Exchanges | Height: 260 mm, Width: 158 mm, Depth: 70 mm |
| Weight | 2 kg |
| Case | External; UV-resistant plastic front; Aluminium mounting base |
| Installation | Direct mounting to a compatible antenna |
| Degree of protection | IP67 |
| Cable harbours | SFP connector; RJ45 – Gigabit Ethernet 10/100/1000-BASE-T |
| Certification | FCC Part 101 and EN 302 217; RoHS Compliance; UL/EC/EN/ 60950-1 + CSA-22.2 |
